Ceramic Package Substrate For 5G Radio Frequency

Thin-film circuit ceramic packaging substrates are widely used in 5G RF front-end discrete devices and module packaging due to their high reliability, high thermal conductivity, high circuit resolution, high circuit flatness, and excellent noise reduction and anti-interference capabilities.

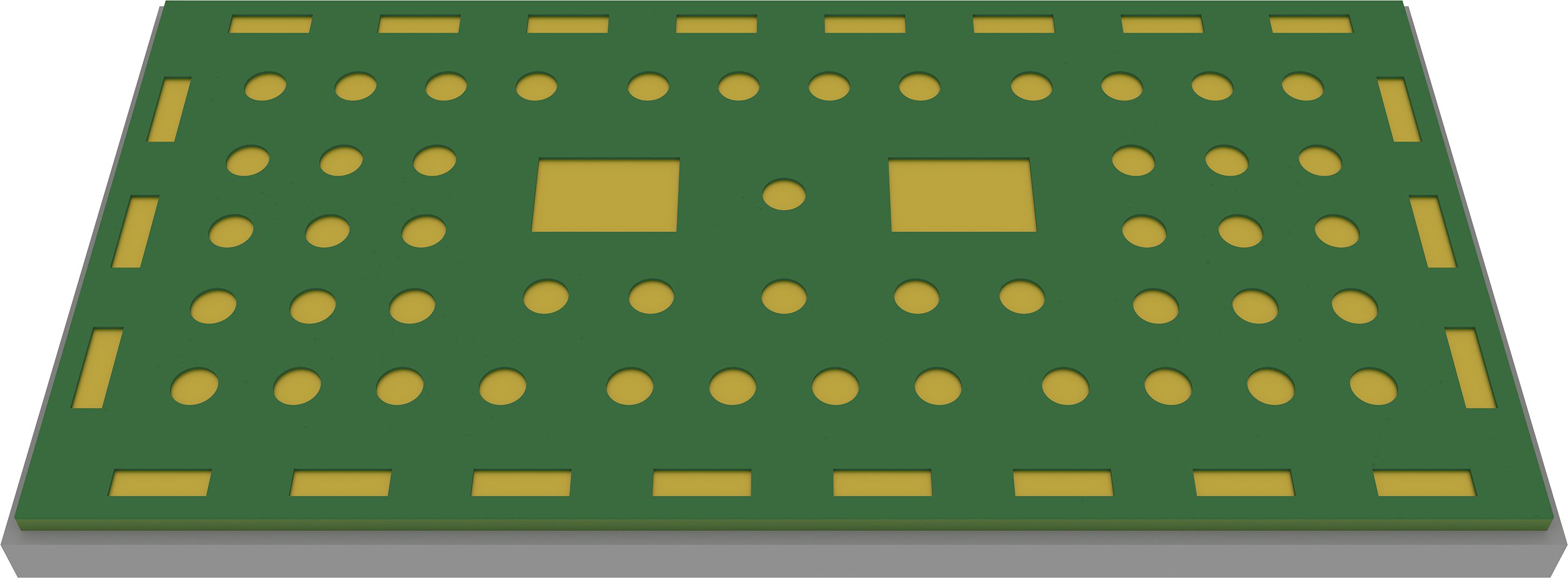

  • 3D Integrated Packaging Upper Substrate

    Features: This substrate has a high degree of integration, high reliability, and low cost. It is also miniaturized, allowing it to realize the stacked package of microwave multi-chip modules with different functions in the Z-axis direction.

    Model:

    9550

    Material:

    Alumina/aluminum nitride

    Substrate Thickness:

    0.6±0.05 mm

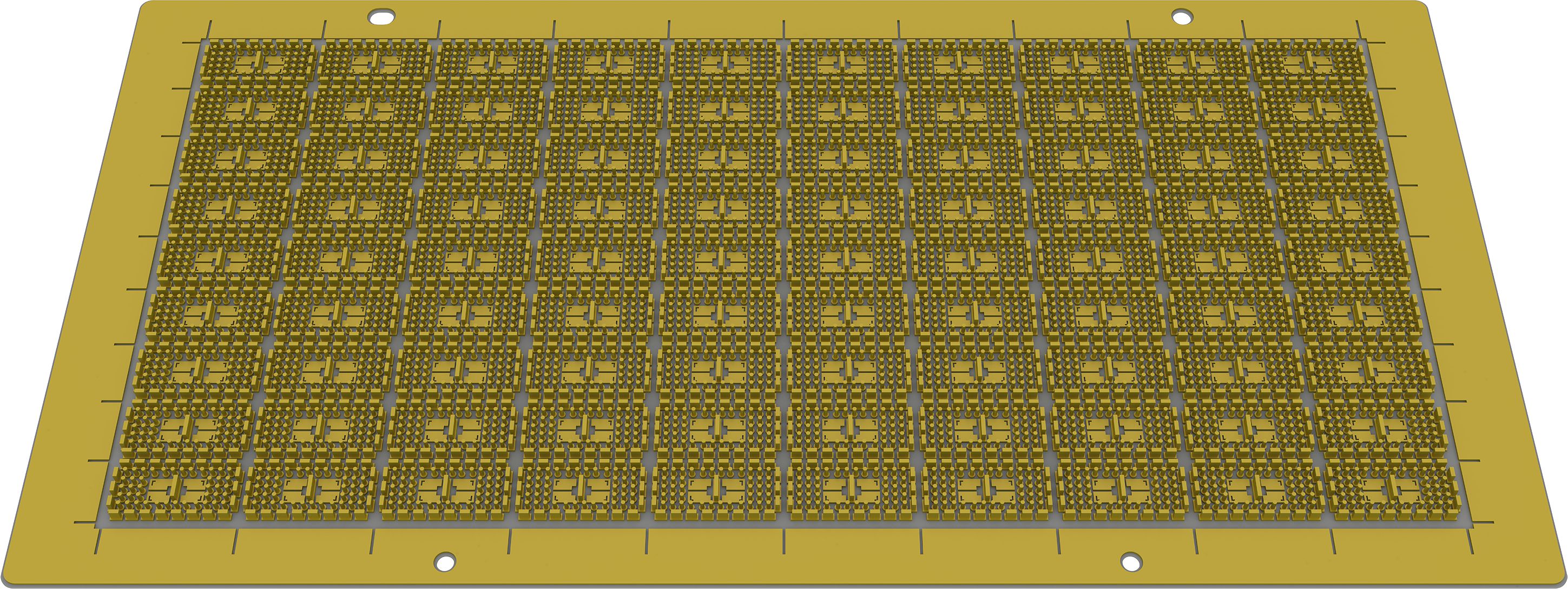

    Number Of Typeset:

    90 pcs/sheet

    Sheet Size:

    109.2×54.5 mm

    Single Size:

    9.45×4.76 mm

    Minimum Line Width:

    0.15 mm

    Gap Size:

    0.10 mm

    Minimum Aperture:

    0.07 mm

    Copper Thickness:

    50±15 μm

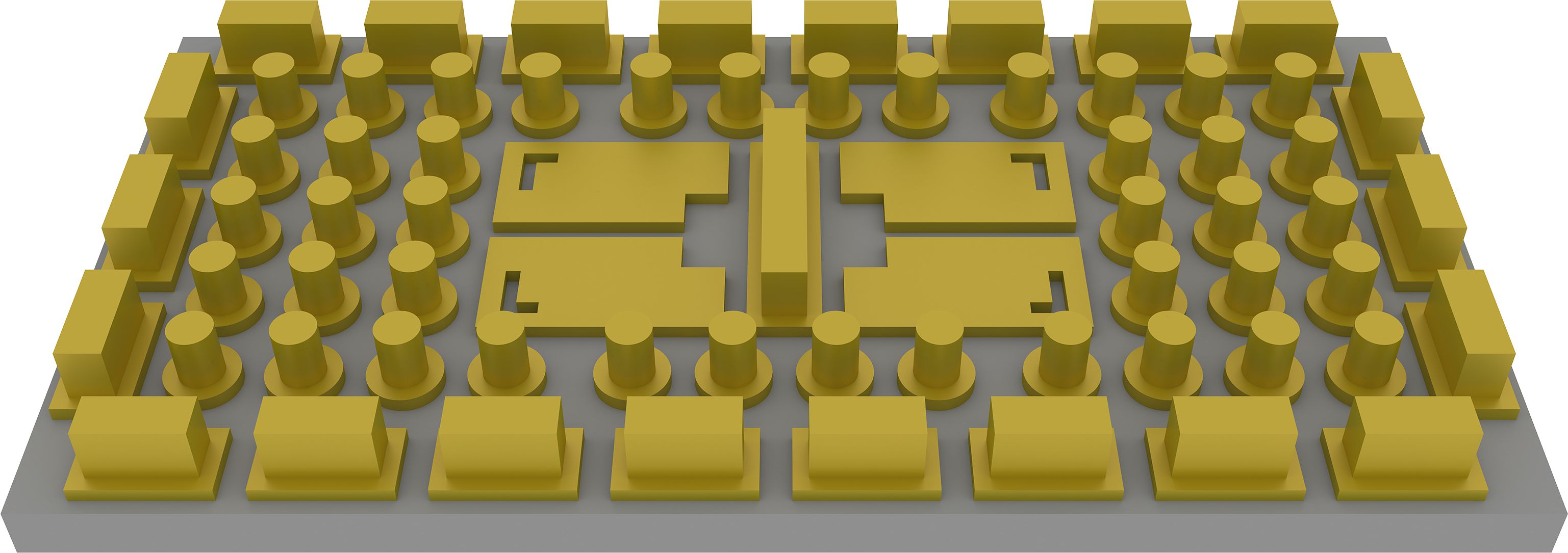

    Dam Thickness:

    Step Height:

    Boss Copper Thickness:

    Metal Column High:

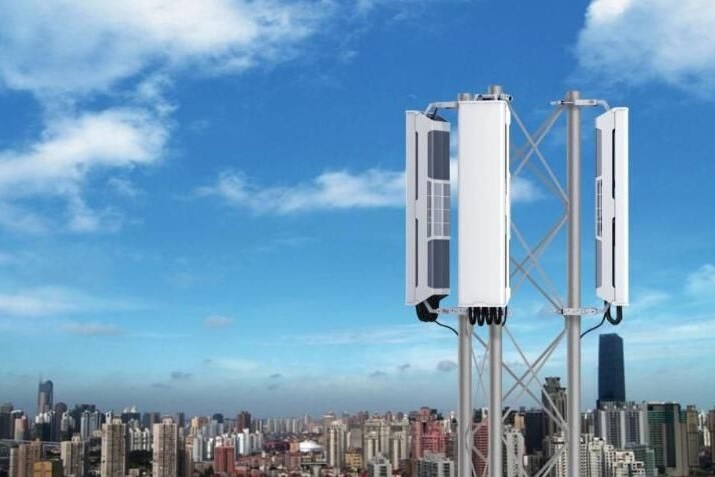

    Suitable for: 5G macro base stations, military radars, micro-nano satellites, etc.

    Application Scenarios
