Ceramic Package Substrate For 5G Radio Frequency

Thin-film circuit ceramic packaging substrates are widely used in 5G RF front-end discrete devices and module packaging due to their high reliability, high thermal conductivity, high circuit resolution, high circuit flatness, and excellent noise reduction and anti-interference capabilities.

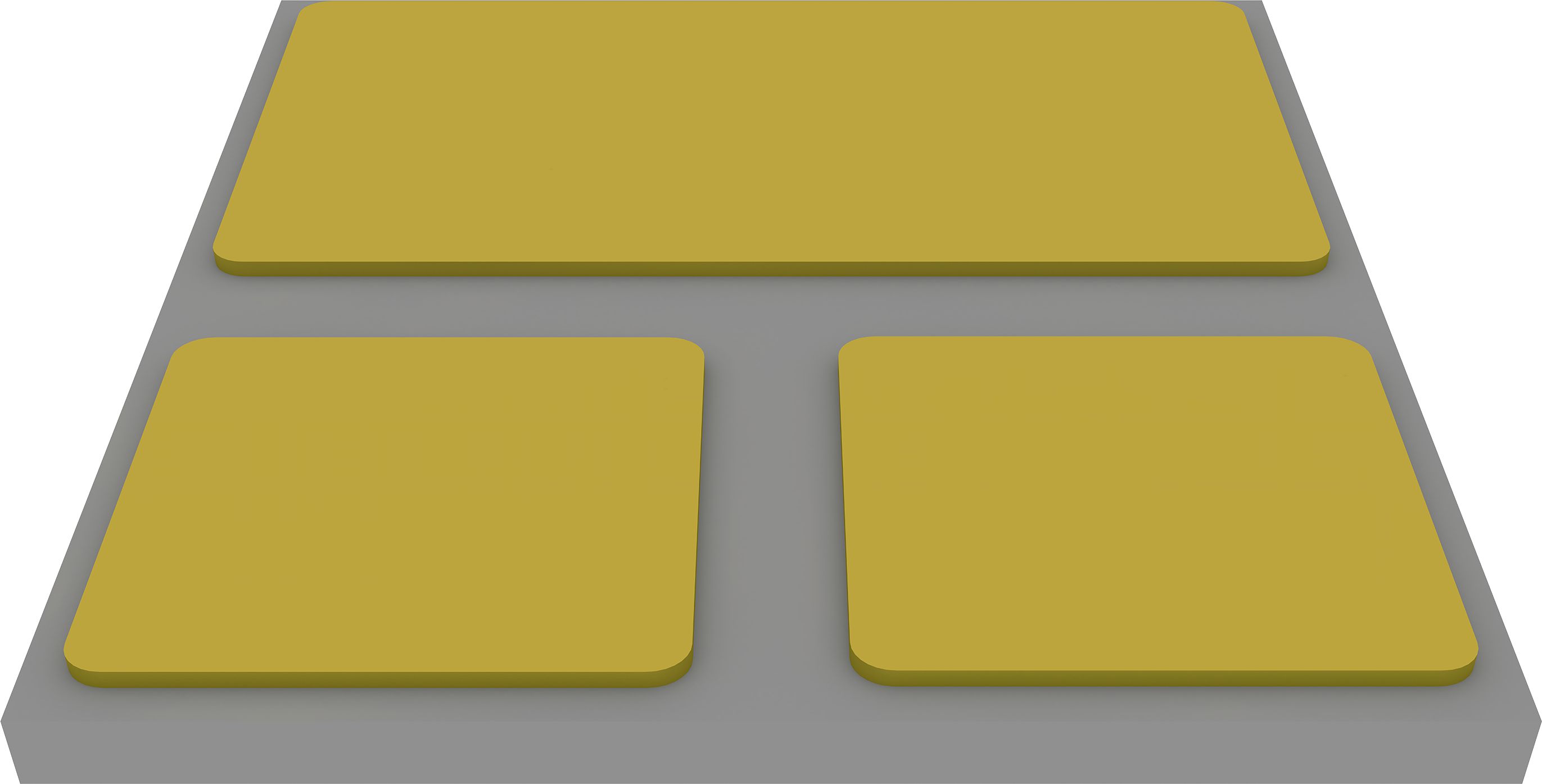

  • Duplex Substrate

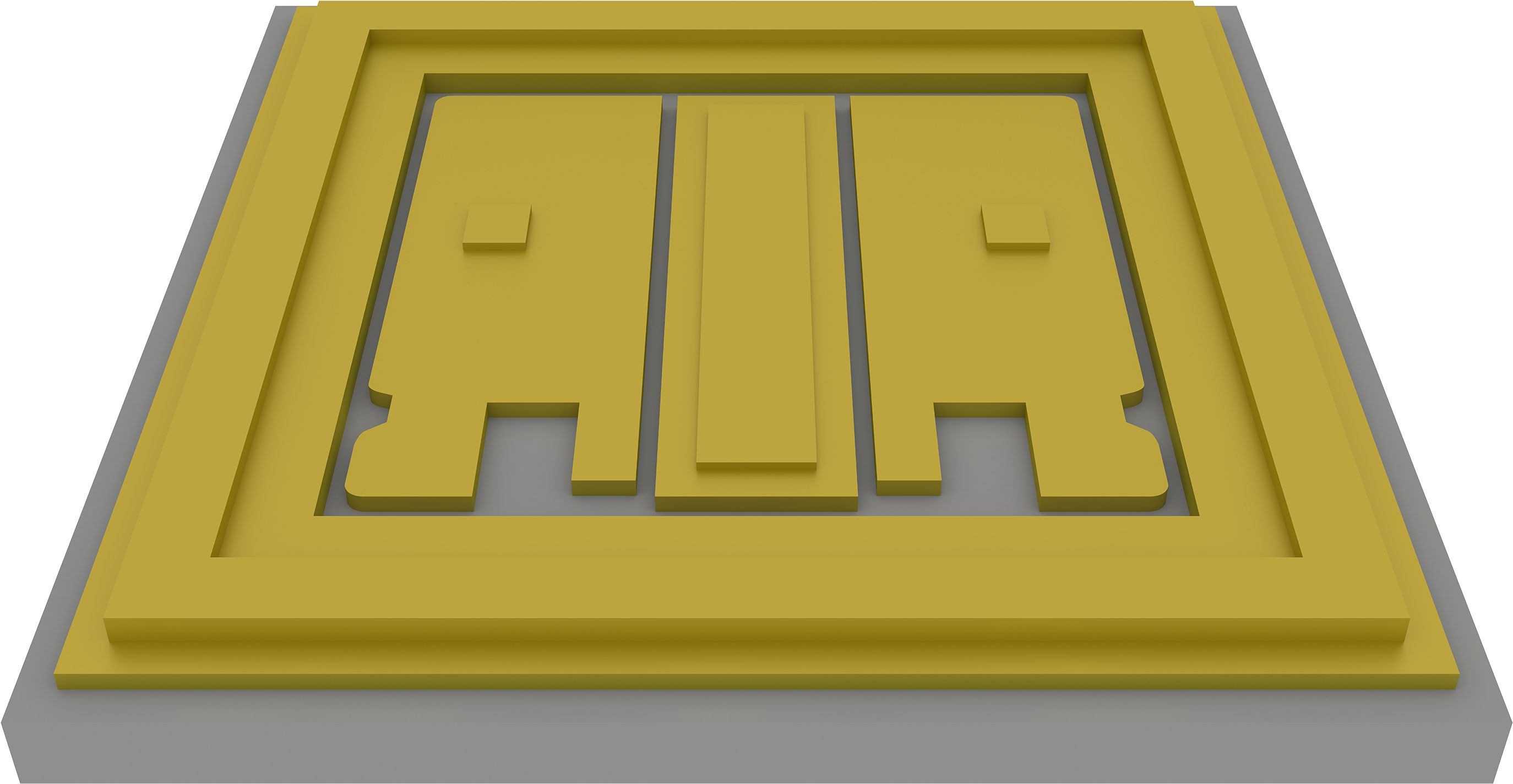

    Features: This substrate features high line flatness and high line resolution, and produced with a highly controllable boss design and a shielding cavity design, suitable for the CSP packaging of duplexer.

    Model:

    3535

    Material:

    Alumina/aluminum nitride

    Substrate Thickness:

    1.1±0.15 mm

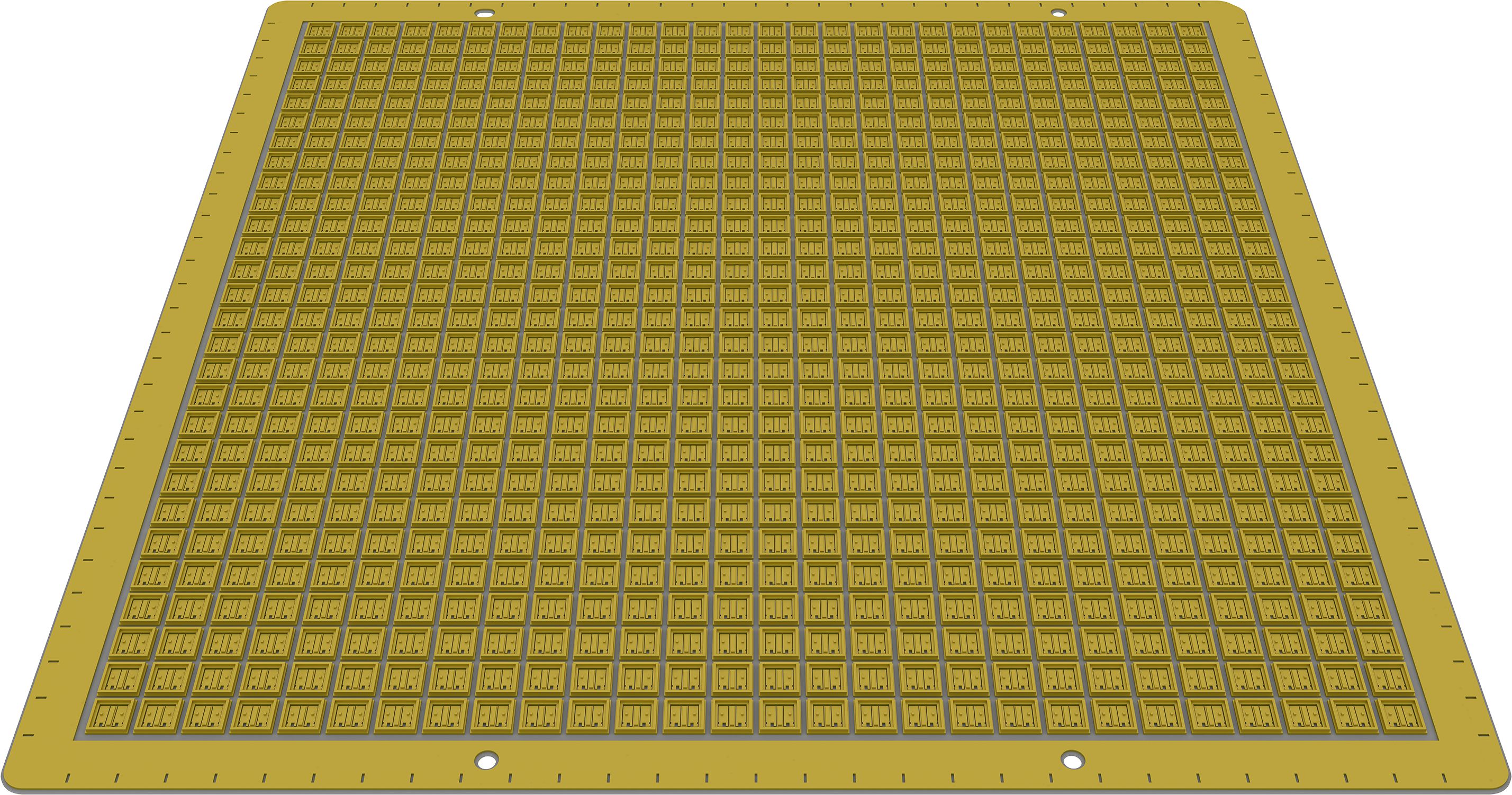

    Number Of Typeset:

    784 pcs/sheet

    Sheet Size:

    109.2×109.2 mm

    Single Size:

    3.34×3.34 mm

    Minimum Line Width:

    0.14 mm

    Gap Size:

    0.07 mm

    Minimum Aperture:

    0.07 mm

    Copper Thickness:

    50±15 μm

    Dam Thickness:

    400±50 μm

    Step Height:

    40±15 μm

    Boss Copper Thickness:

    40±15 μm

    Metal Column High:

    Suitable for: Mobile terminal RF front-end modules, duplexers, etc.

    Application Scenarios
