Ceramic Package Substrate For 5G Radio Frequency

Thin-film circuit ceramic packaging substrates are widely used in 5G RF front-end discrete devices and module packaging due to their high reliability, high thermal conductivity, high circuit resolution, high circuit flatness, and excellent noise reduction and anti-interference capabilities.

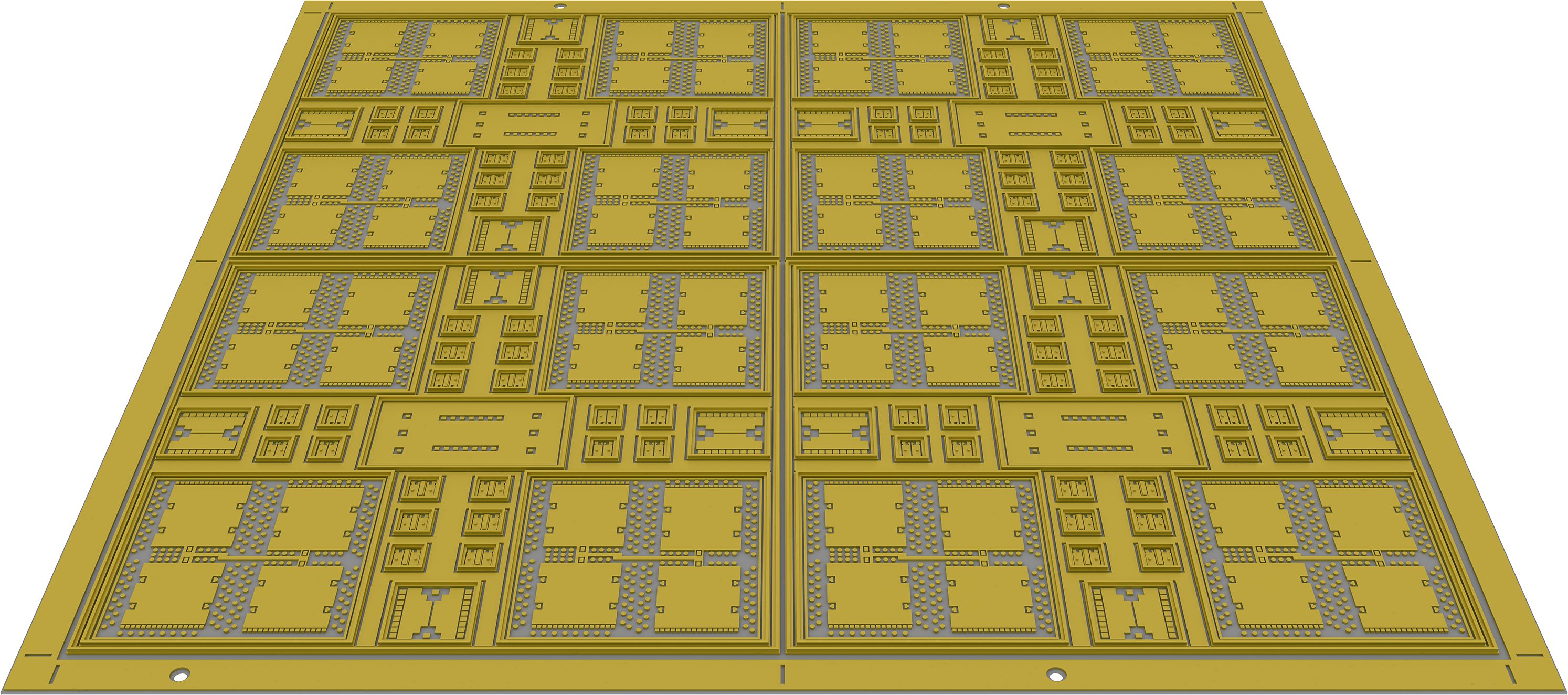

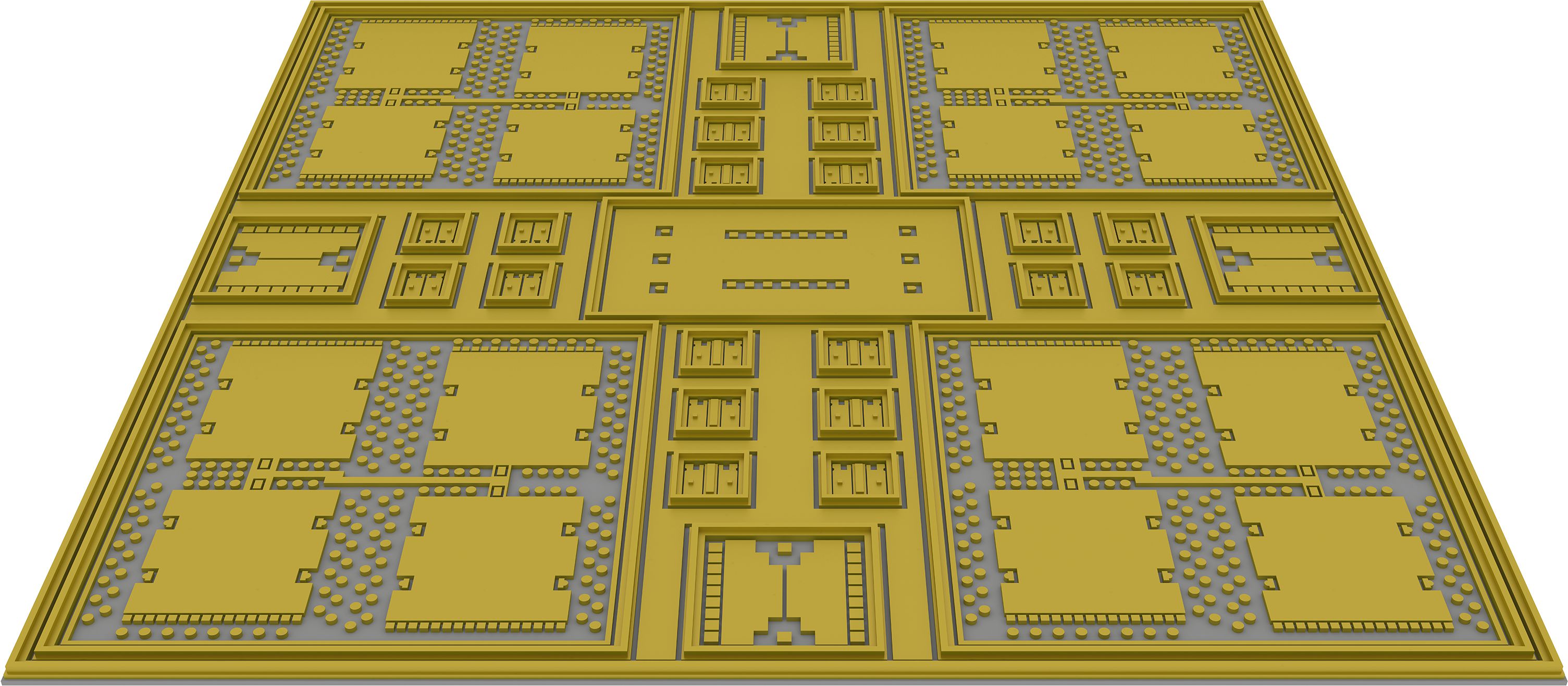

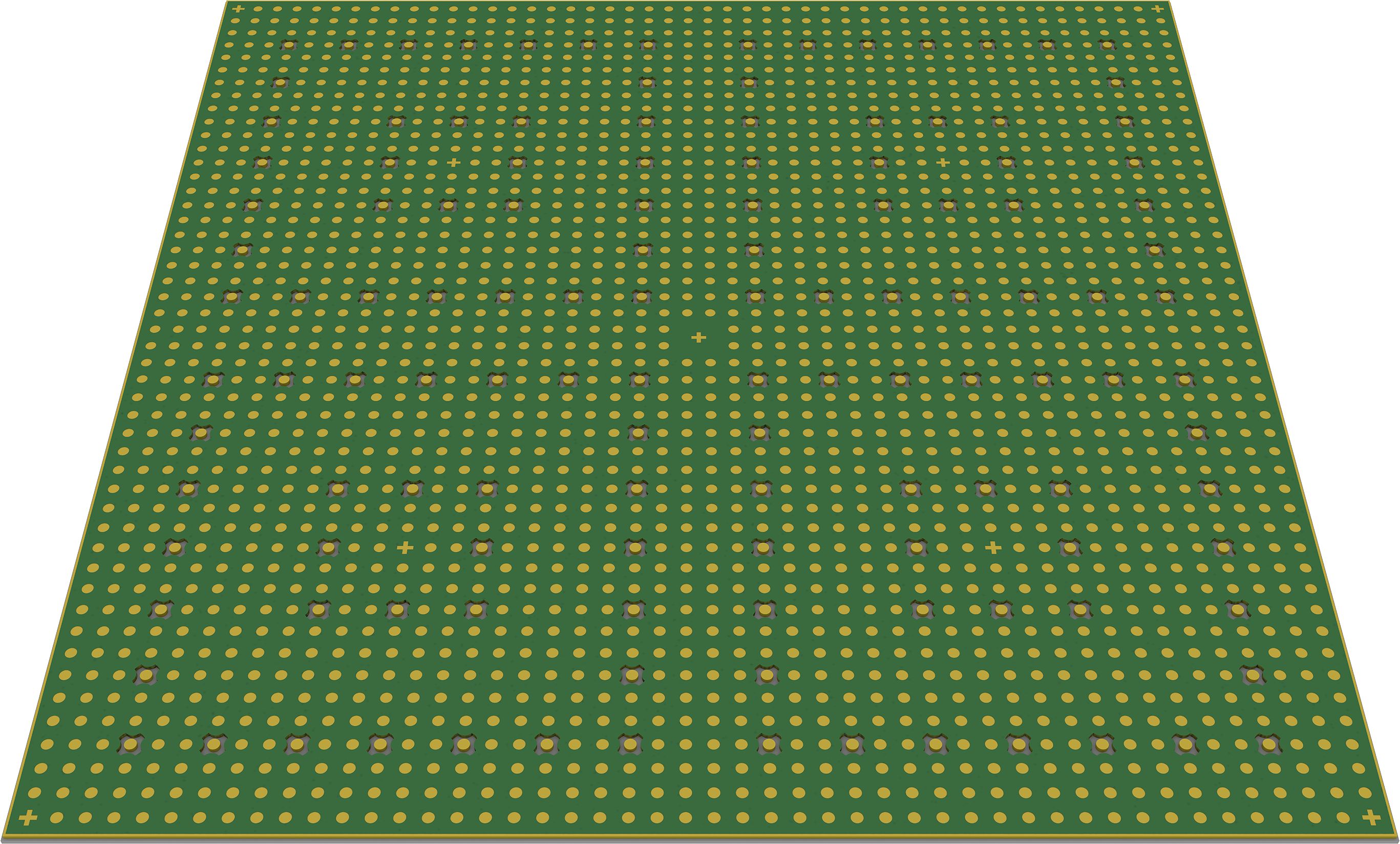

  • RF Front-end Module Substrate

    Features: This substrate features high line flatness and high line resolution, with integrated split and conformal shielding design, characterized with a high level of integration, making it suitable for packaging RF front-end multi-chip module.

    Model:

    5555

    Material:

    Alumina/aluminum nitride

    Substrate Thickness:

    1.1±0.15 mm

    Number Of Typeset:

    4 pcs/sheet

    Sheet Size:

    114.6×114.6 mm

    Single Size:

    53.5×53.5 mm

    Minimum Line Width:

    0.20 mm

    Gap Size:

    0.10 mm

    Minimum Aperture:

    0.07 mm

    Copper Thickness:

    50±15 μm

    Dam Thickness:

    400±50 μm

    Step Height:

    40±15 μum

    Boss Copper Thickness:

    40±15 μm

    Metal Column High:

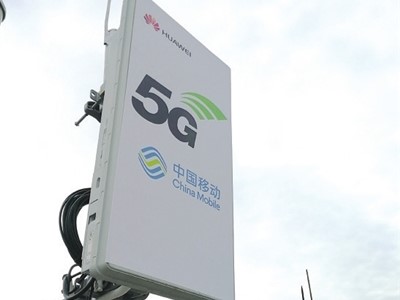

    Suitable for: Mobile terminal RF front-end modules, 5G micro base stations, etc.
