Ceramic Package Substrate For 5G Optoelectronics

Thin-film circuit ceramic packaging substrates are widely used in 5G optoelectronic devices such as LED lighting, UV LED, car lights, flashlights, face recognition, and Lidar due to their high reliability, high thermal conductivity, high circuit resolution, high circuit flatness.

  • LED Lighting Substrate

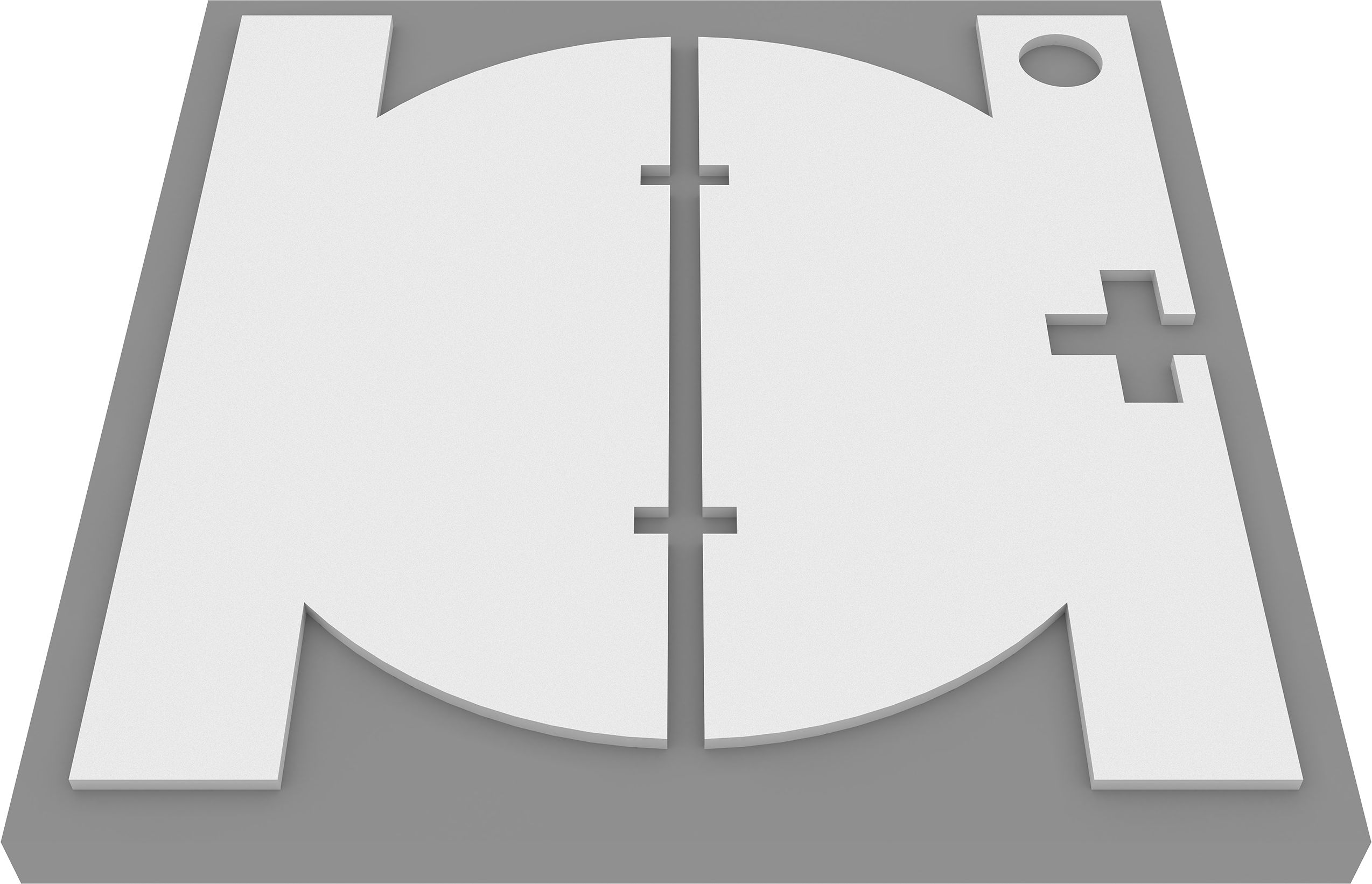

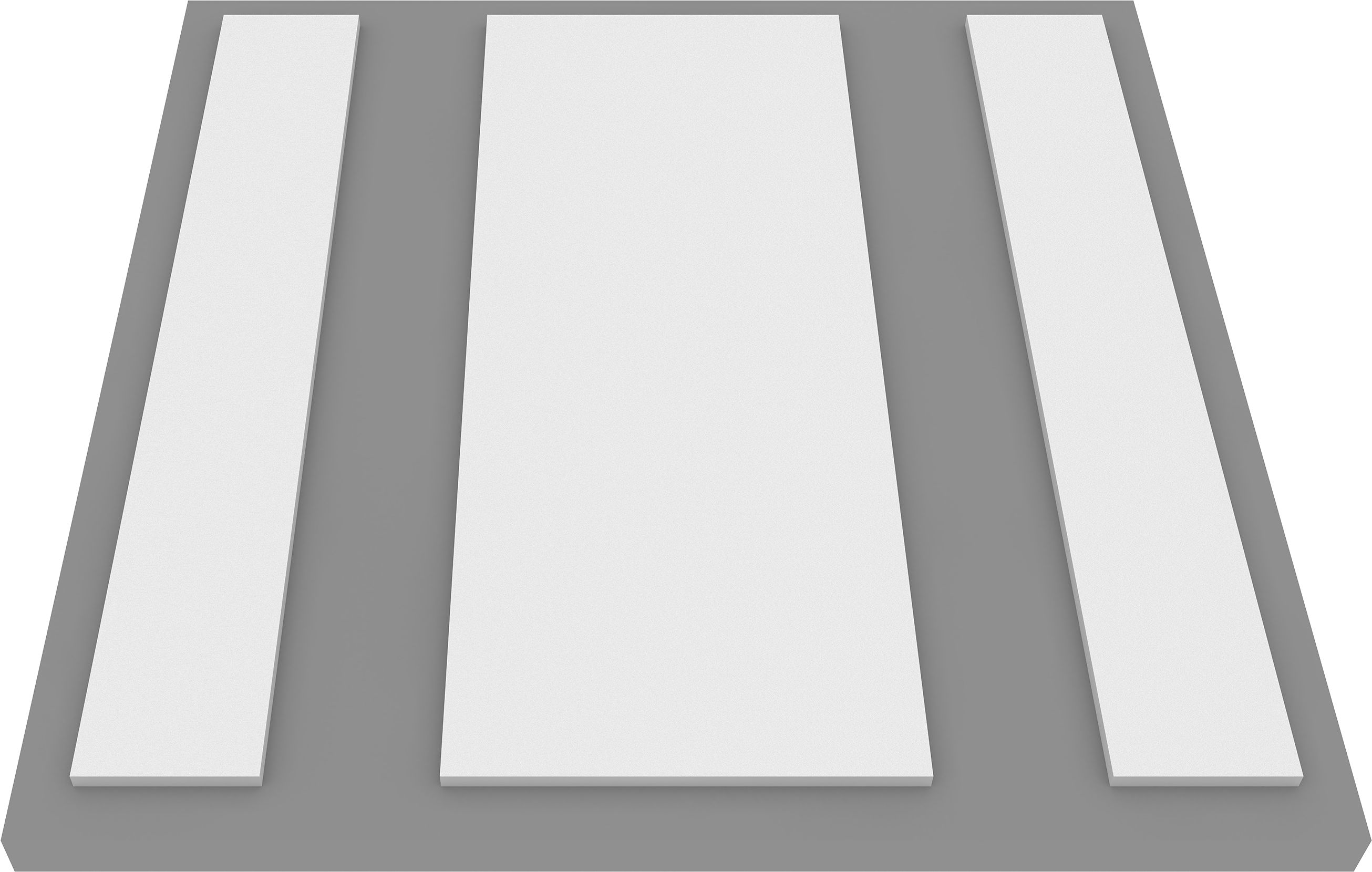

    Features: This substrate features the smooth surface and low roughness of the product are conducive to eutectic welding and the packaging process is simple.

    Model:

    3535

    Material:

    Alumina/aluminum nitride

    Substrate Thickness:

    0.51±0.05 mm

    Number Of Typeset:

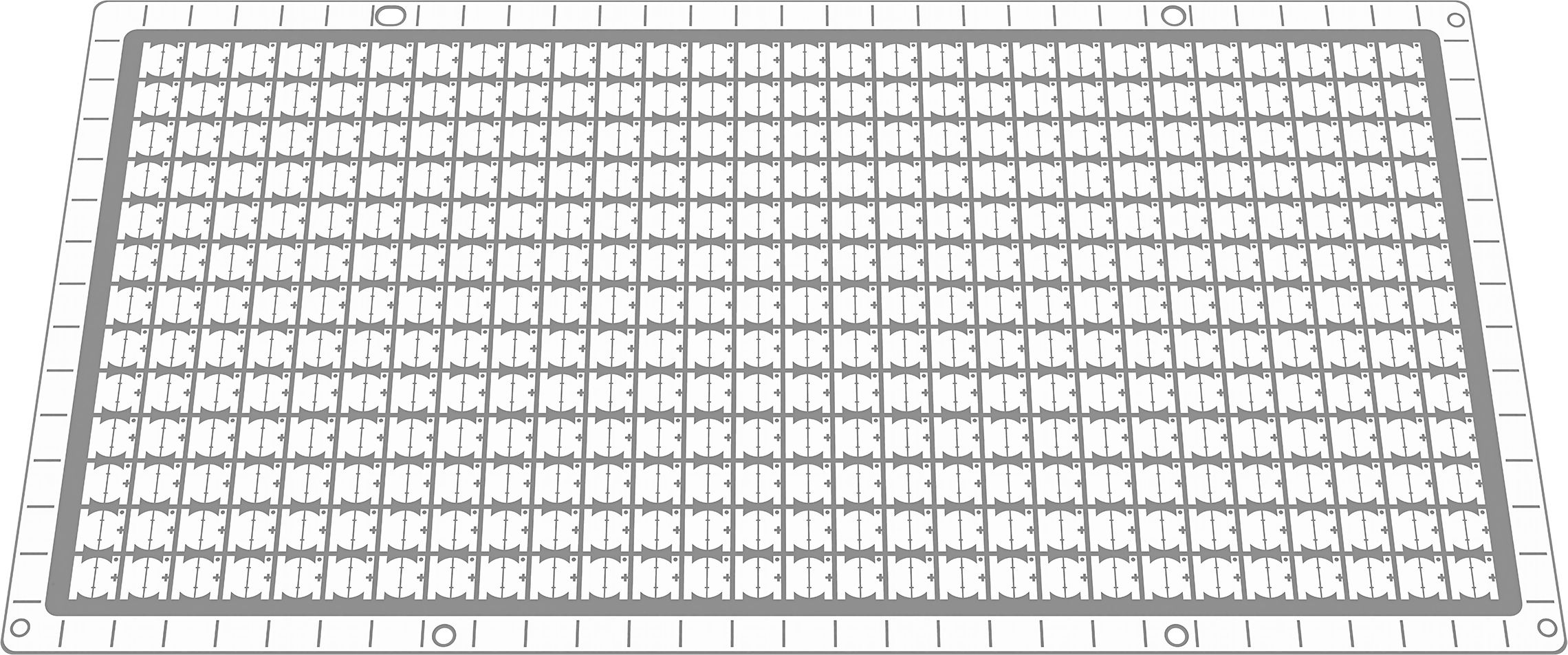

    364 pcs/sheet

    Sheet Size:

    109.2×54.5 mm

    Single Size:

    3.5×3.5 mm

    Minimum Line Width:

    0.10 mm

    Gap Size:

    0.10 mm

    Minimum Aperture:

    0.07 mm

    Copper Thickness:

    65±15 μm

    Dam Thickness:

    Step Height:

    Boss Copper Thickness:

    Metal Column High:

    Suitable for: Street lamps, flashlights, plant lighting, atmosphere lighting, etc.
