Ceramic Package Substrate For 5G Optoelectronics

Thin-film circuit ceramic packaging substrates are widely used in 5G optoelectronic devices such as LED lighting, UV LED, car lights, flashlights, face recognition, and Lidar due to their high reliability, high thermal conductivity, high circuit resolution, high circuit flatness.

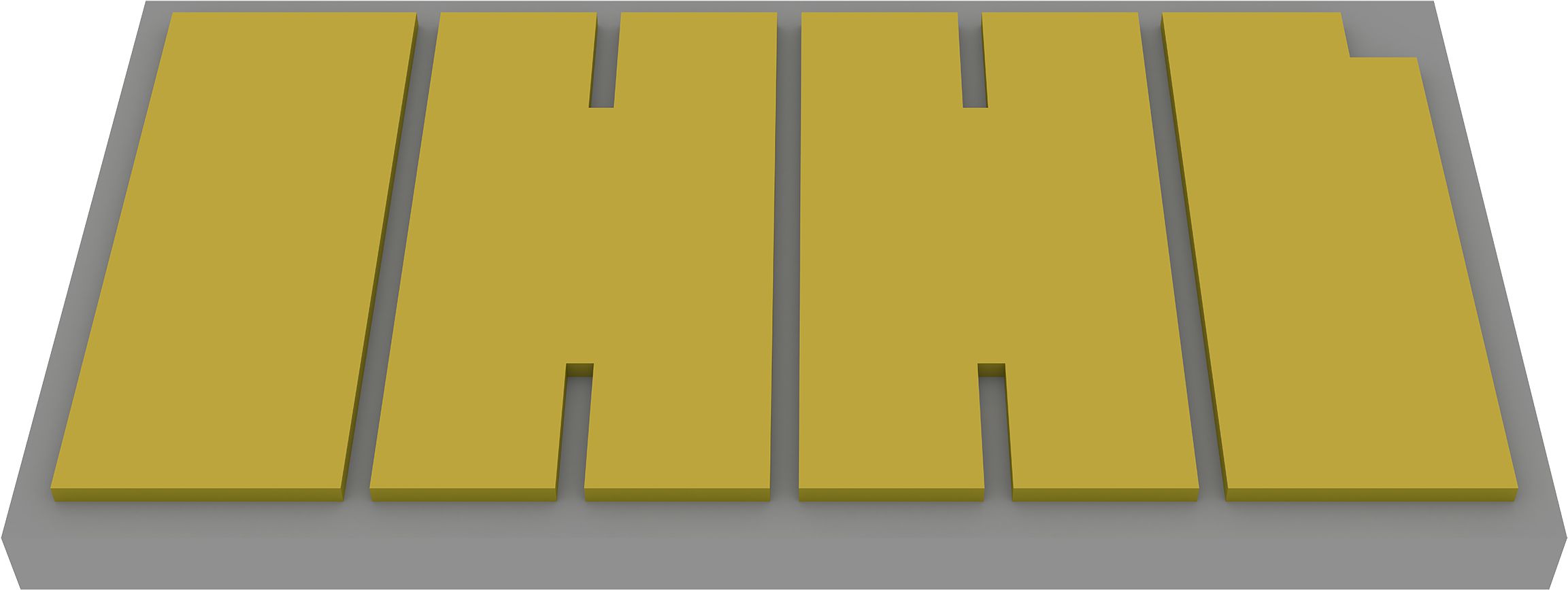

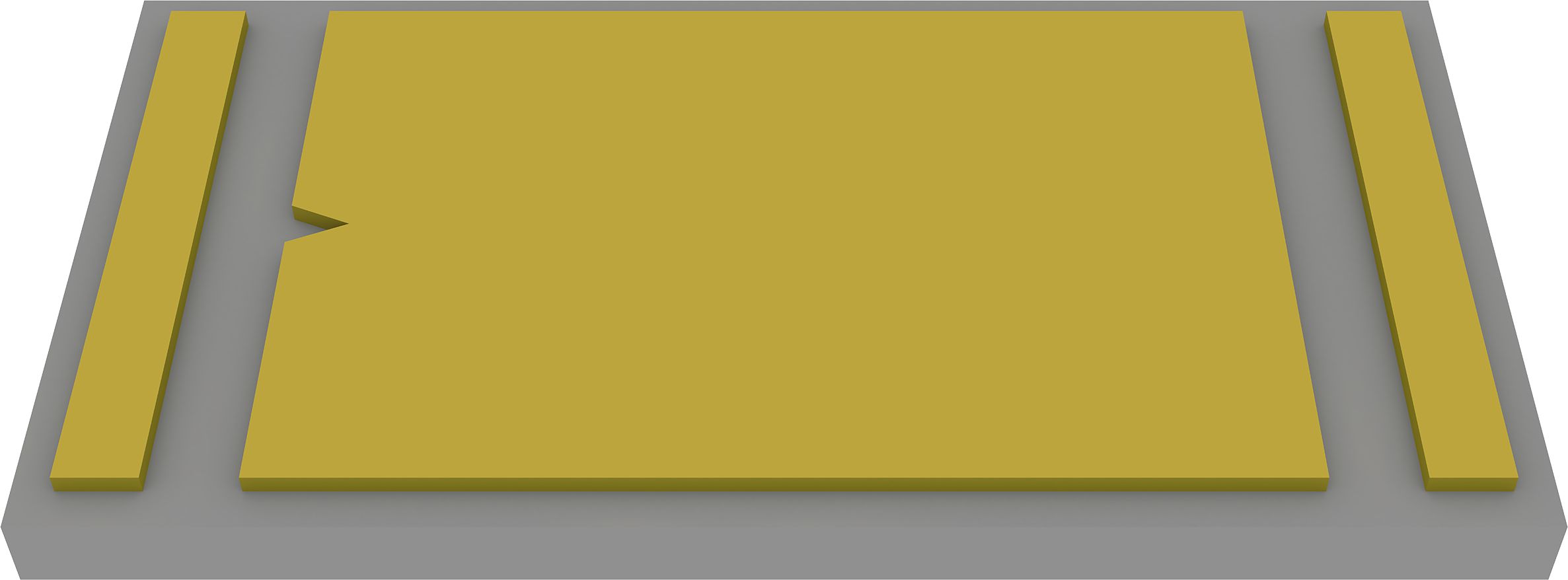

  • LED Vehicle Light Substrate

    Features: This substrate features the surface of the product is flat, the chip can be closely attached to the substrate, the cavity rate is low, suitable for the packaging of flip chip.

    Model:

    7035

    Material:

    aluminum nitride

    Substrate Thickness:

    0.51±0.05 mm

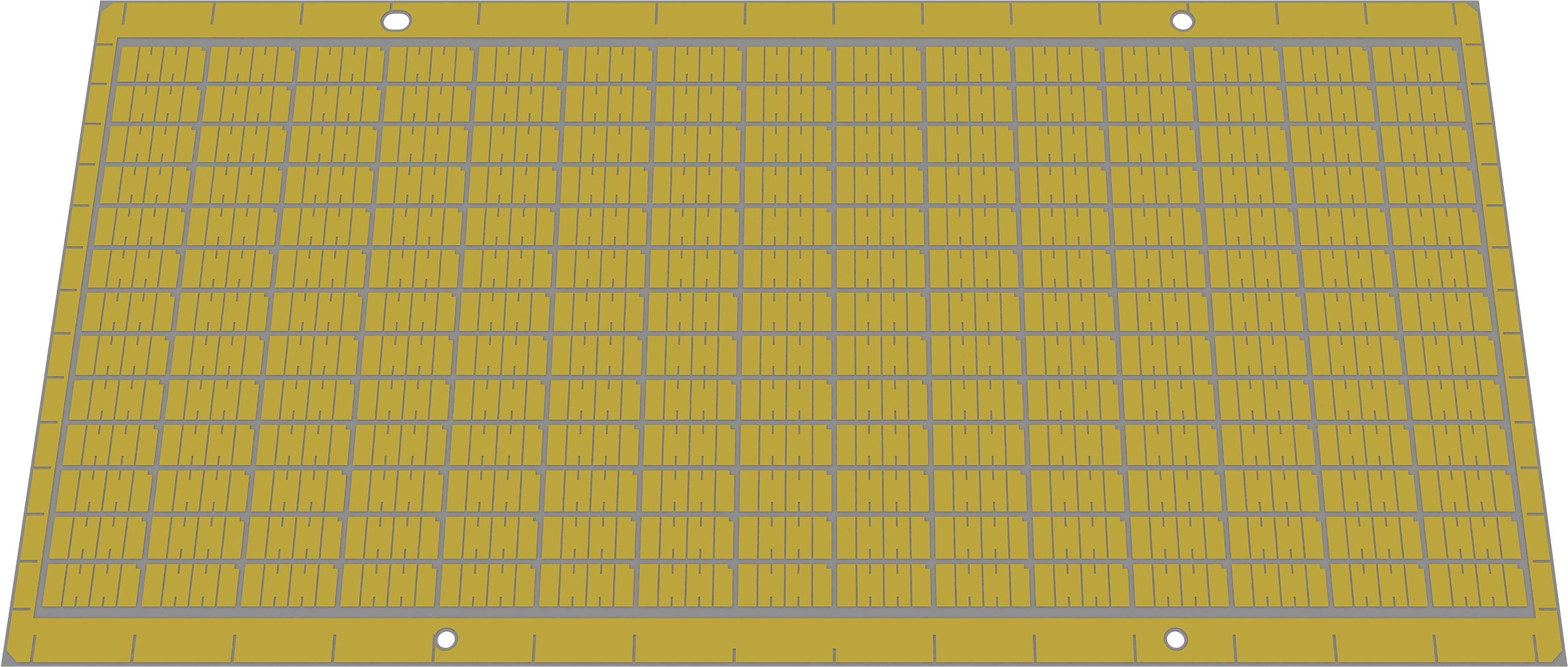

    Number Of Typeset:

    168 pcs/sheet

    Sheet Size:

    109.2×54.5 mm

    Single Size:

    7.0×3.5 mm

    Minimum Line Width:

    0.8 mm

    Gap Size:

    0.13 mm

    Minimum Aperture:

    0.07 mm

    Copper Thickness:

    65±15 μm

    Dam Thickness:

    Step Height:

    Boss Copper Thickness:

    Metal Column High:

    Suitable for: Car headlights, taillights, turn signals, etc.

    Application Scenarios
