Ceramic Package Substrate For 5G Optoelectronics

Thin-film circuit ceramic packaging substrates are widely used in 5G optoelectronic devices such as LED lighting, UV LED, car lights, flashlights, face recognition, and Lidar due to their high reliability, high thermal conductivity, high circuit resolution, high circuit flatness.

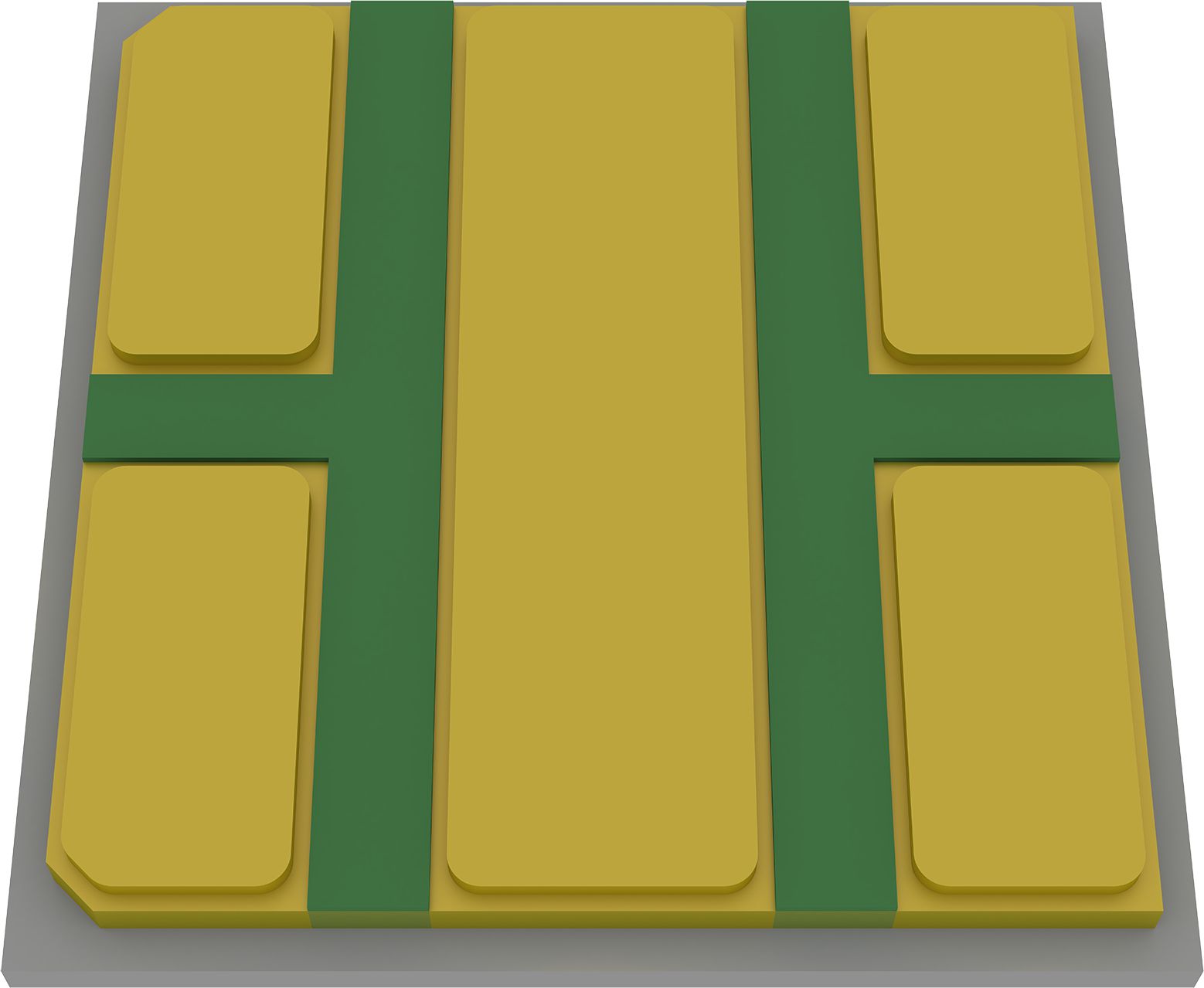

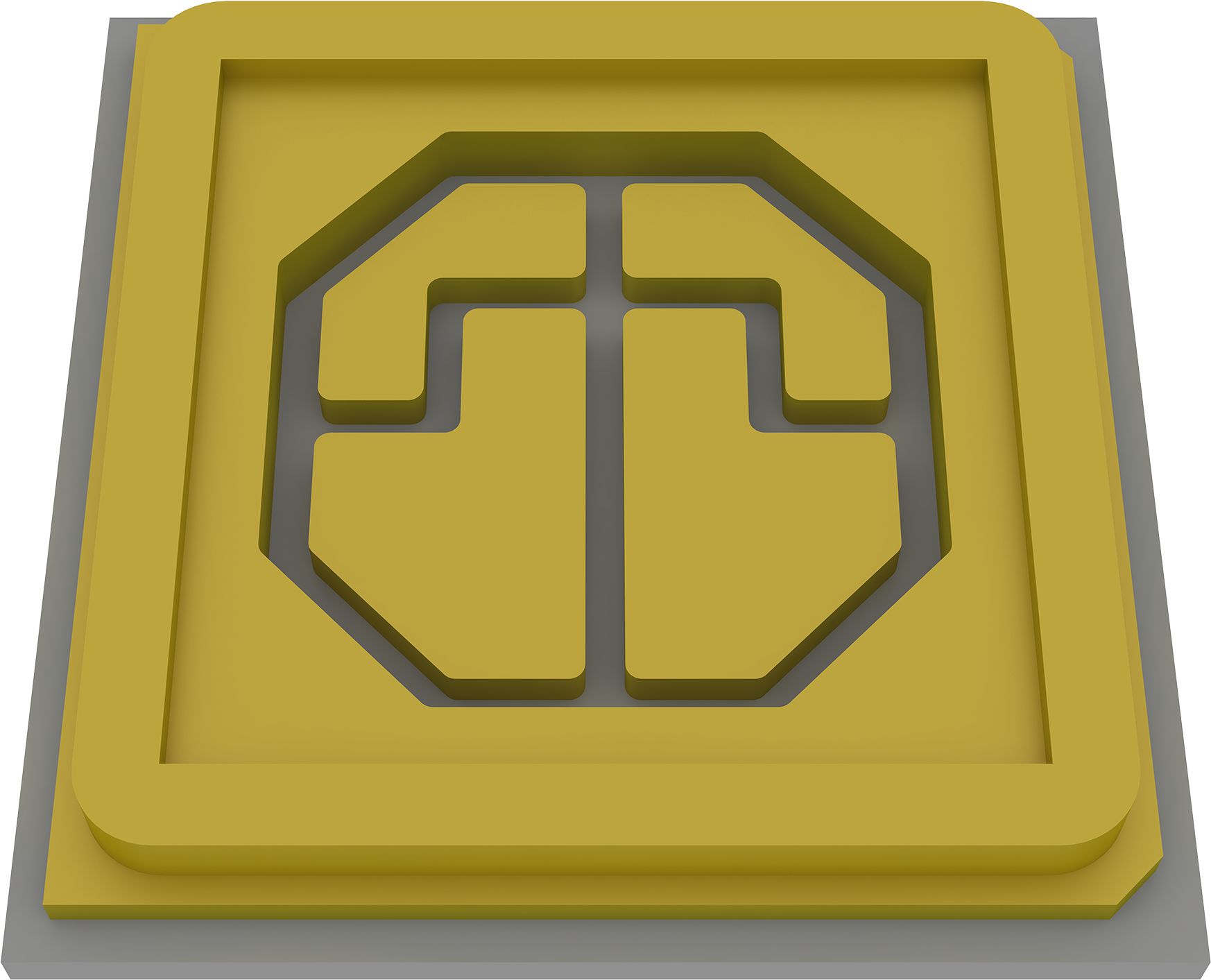

  • UV LED Substrate

    Features: The height of the surrounding dam is adjustable, inorganic integrated package, good airtightness, resistance to aging, high service life.

    Model:

    3535

    Material:

    Aluminum nitride

    Substrate Thickness:

    1.41±0.15 mm

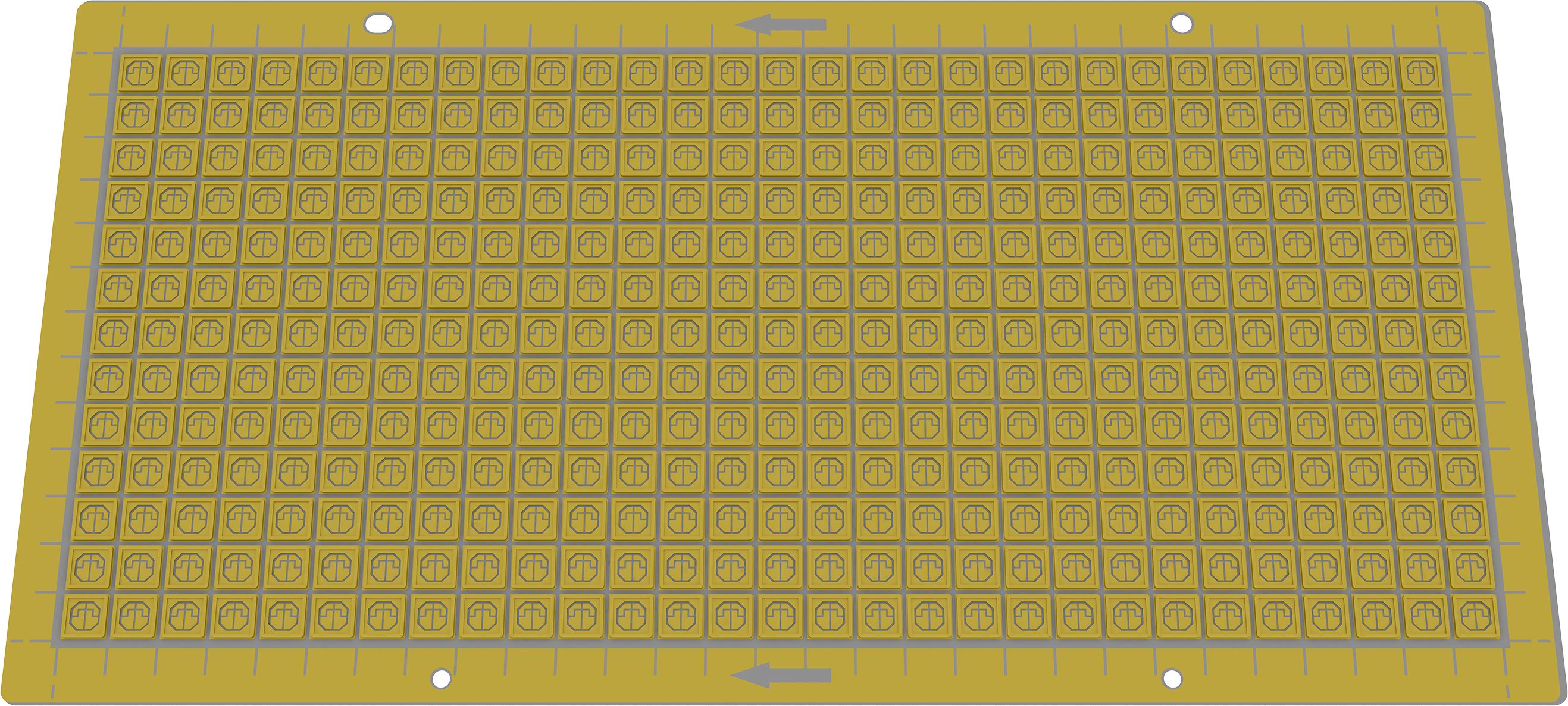

    Number Of Typeset:

    377 pcs/sheet

    Sheet Size:

    109.2×54.5 mm

    Single Size:

    3.5×3.5 mm

    Minimum Line Width:

    0.34 mm

    Gap Size:

    0.12 mm

    Minimum Aperture:

    0.08 mm

    Copper Thickness:

    65±15 μm

    Dam Thickness:

    400±50 μm

    Step Height:

    200±50 μm

    Boss Copper Thickness:

    Metal Column High:

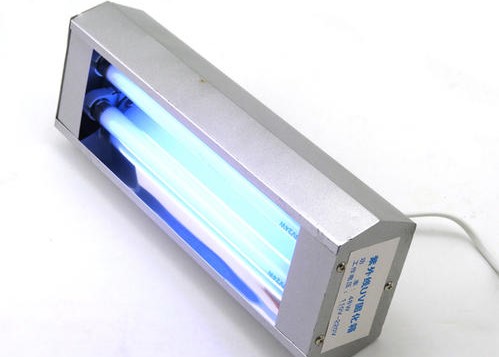

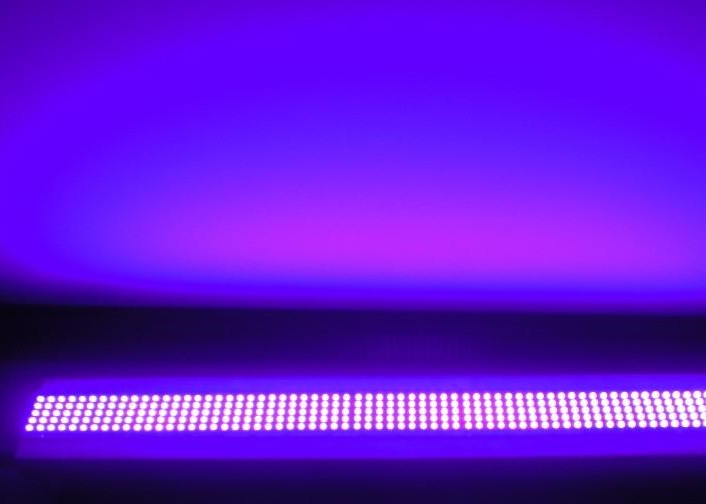

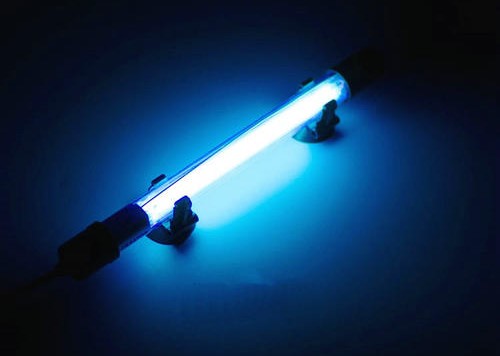

    Suitable for: UV curing lights, UV germicidal lamp, etc.

    Application Scenarios
