Ceramic Package Substrate For 5G Optoelectronics

Thin-film circuit ceramic packaging substrates are widely used in 5G optoelectronic devices such as LED lighting, UV LED, car lights, flashlights, face recognition, and Lidar due to their high reliability, high thermal conductivity, high circuit resolution, high circuit flatness.

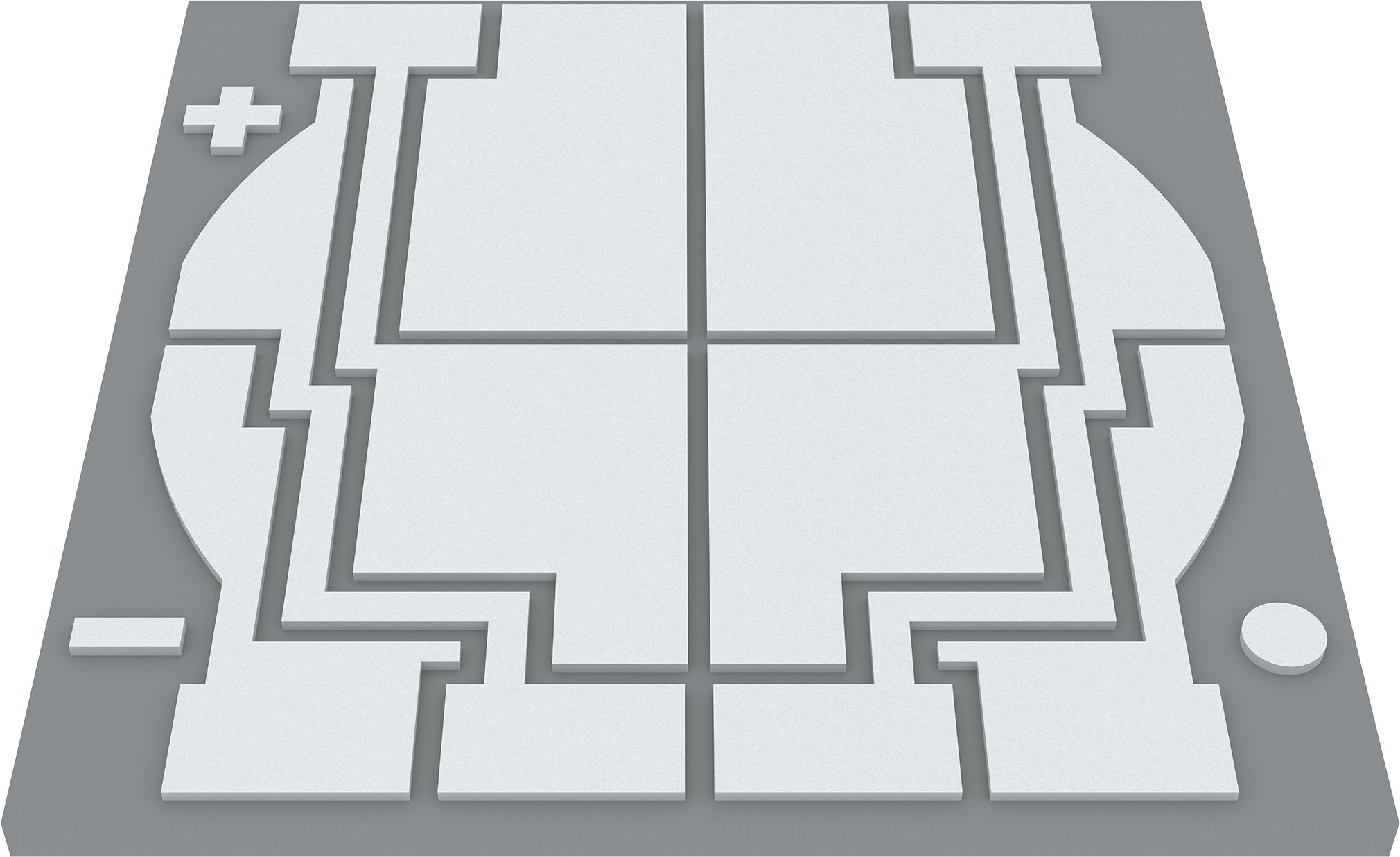

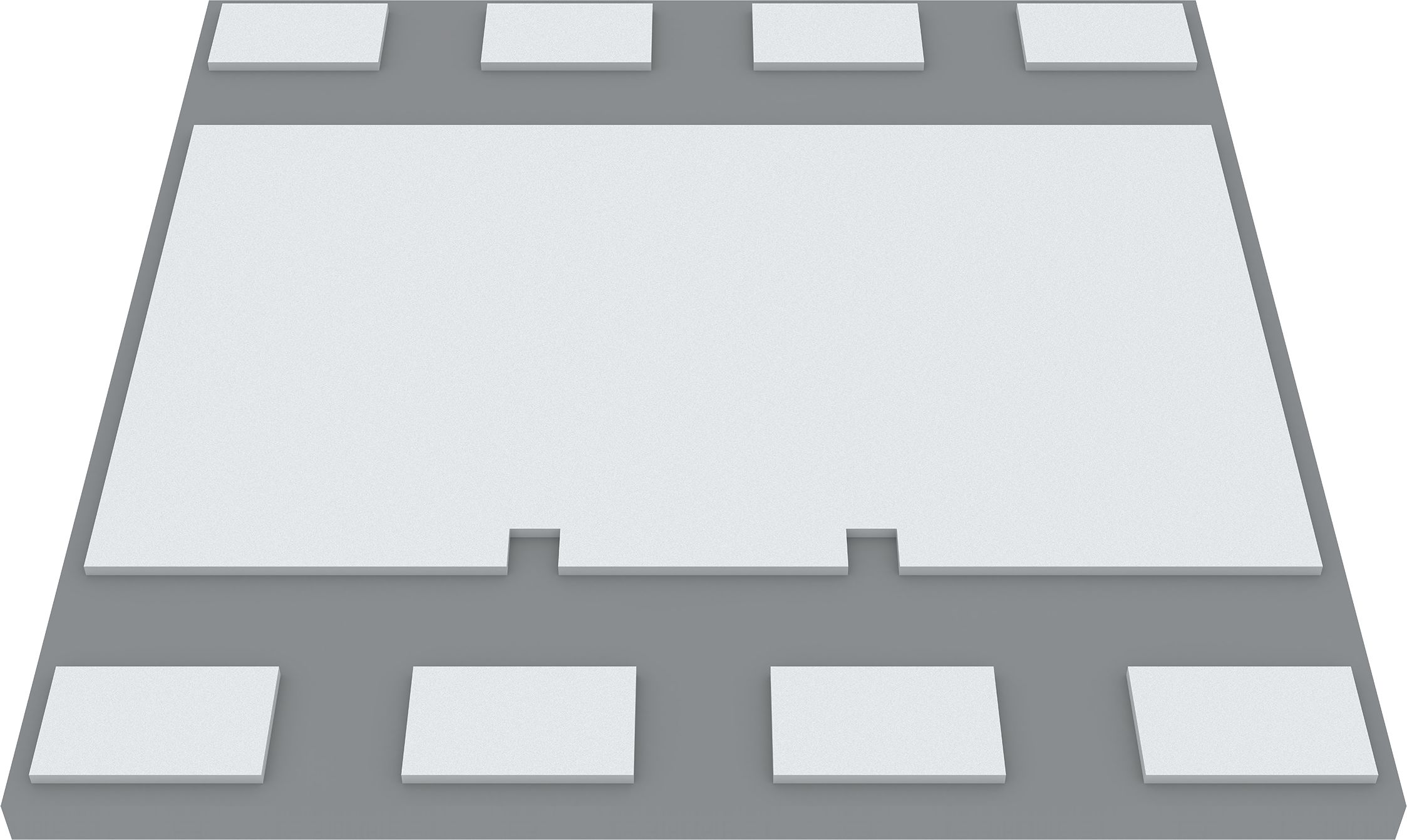

  • LED Stage Light Substrate

    Features: This substrate features high line precision, high thermal conductivity, high flatness, suitable for four-color chip packaging.

    Model:

    5050

    Material:

    Alumina/aluminum nitride

    Substrate Thickness:

    0.60±0.05 mm

    Number Of Typeset:

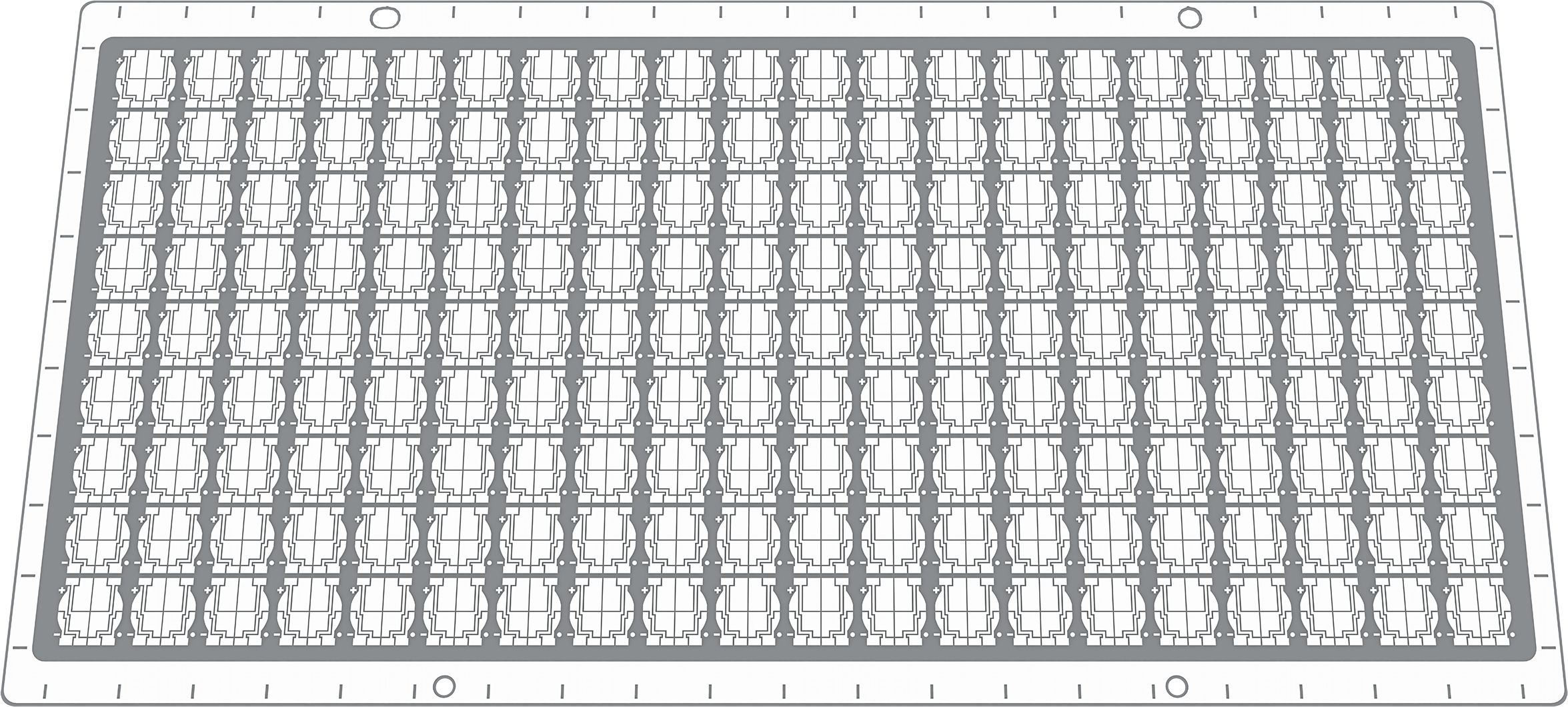

    180 pcs/sheet

    Sheet Size:

    109.2×54.5 mm

    Single Size:

    5.0×5.0 mm

    Minimum Line Width:

    0.15 mm

    Gap Size:

    0.08 mm

    Minimum Aperture:

    0.08 mm

    Copper Thickness:

    50±15 μm

    Dam Thickness:

    Step Height:

    Boss Copper Thickness:

    Metal Column High:

    Suitable for: Stage lighting, landscape lighting, etc.

    Application Scenarios
